Prague, The Airport Ruzyně - Parking C

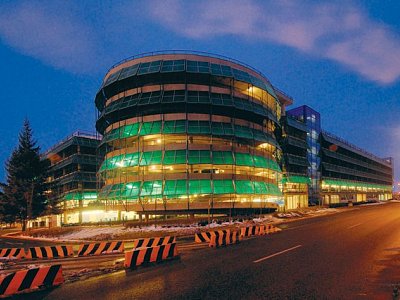

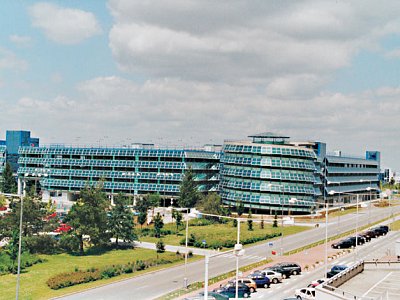

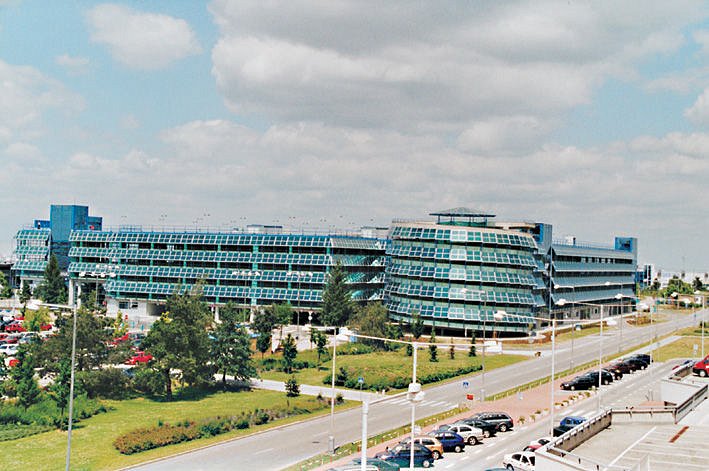

A public, large-scale car park for cars and buses with one underground and six aboveground floors increases the existing parking capacity at Prague´s Ruzyně Airport.

Information:

Location:	Prague 6
Investor:	Letiště Praha, s.p.
Realization:	HOCHTIEF VSB division 8
Type:	Car park
Construction time:	10/2000 - 06/2001

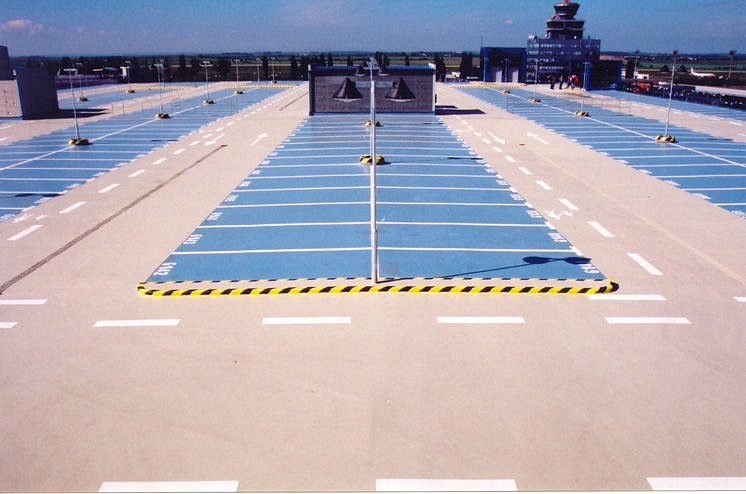

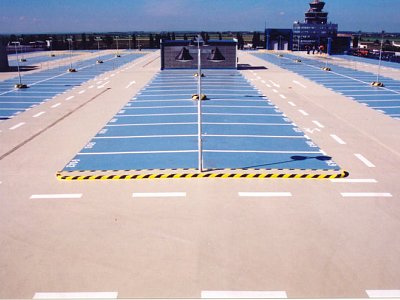

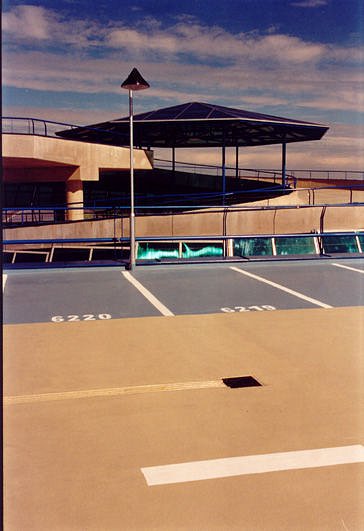

Main indicators:	Built-up area: 13,991 square metres Built-up space: 246,724 cubic metres Parking spaces – 1st floor (car rental): 332 spaces Parking spaces – 2nd floor to 5th floor: 2,180 spaces Parking spaces – 6th floor (the roof): 551 spaces Total parking spaces: 3,063 spaces + 24 outdoor spaces for buses

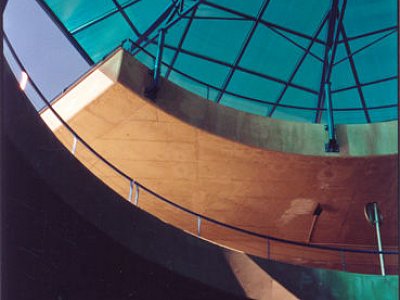

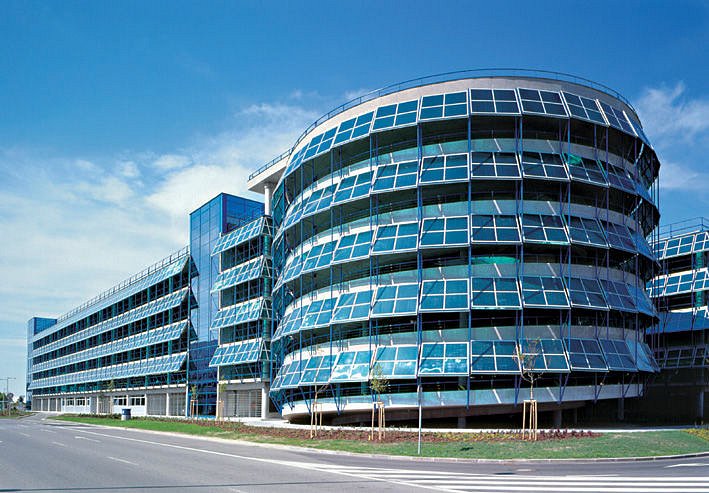

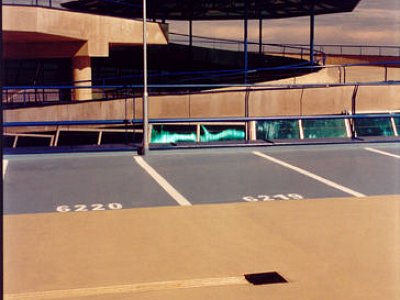

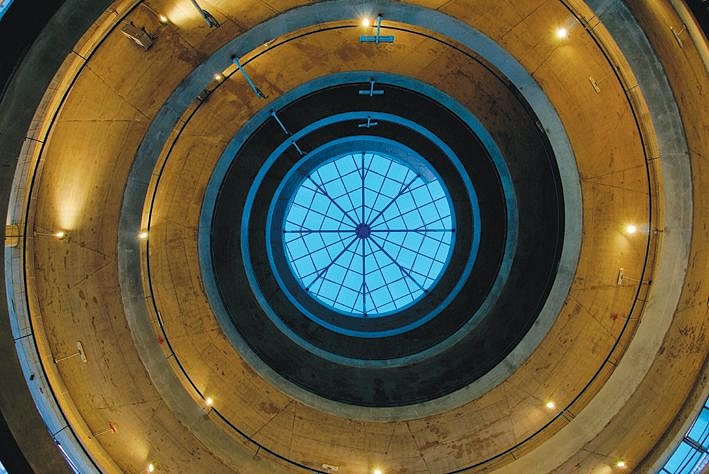

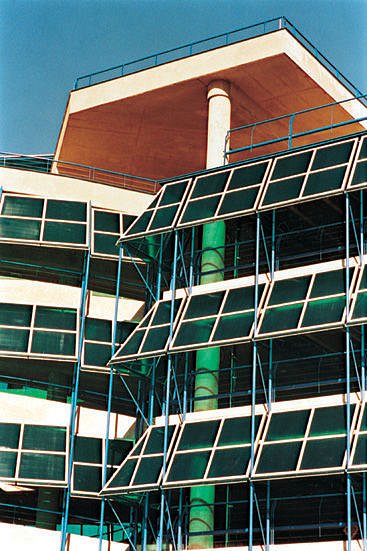

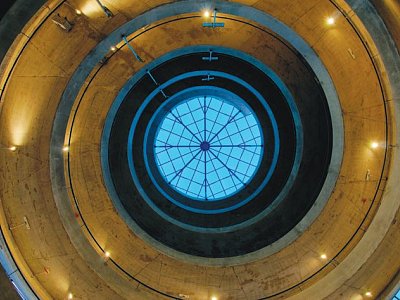

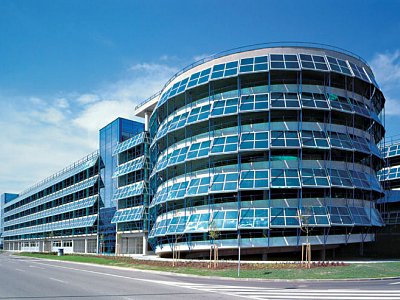

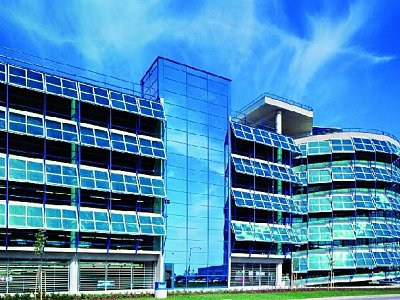

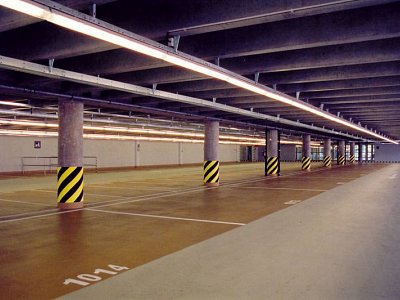

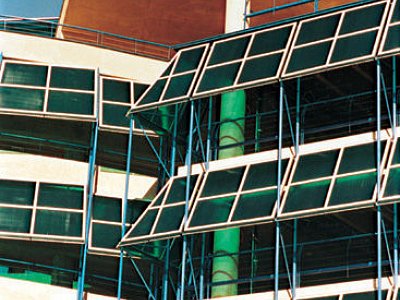

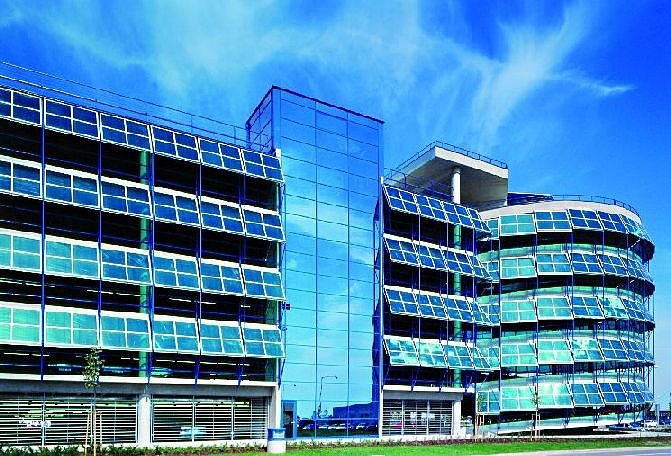

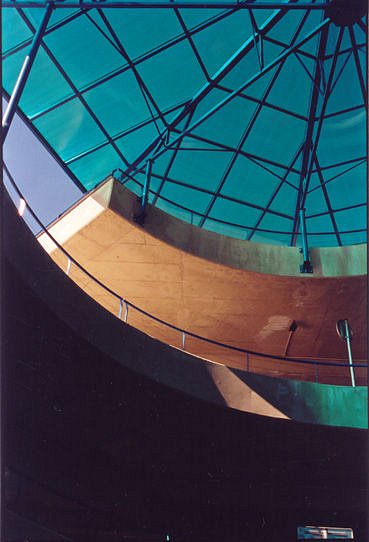

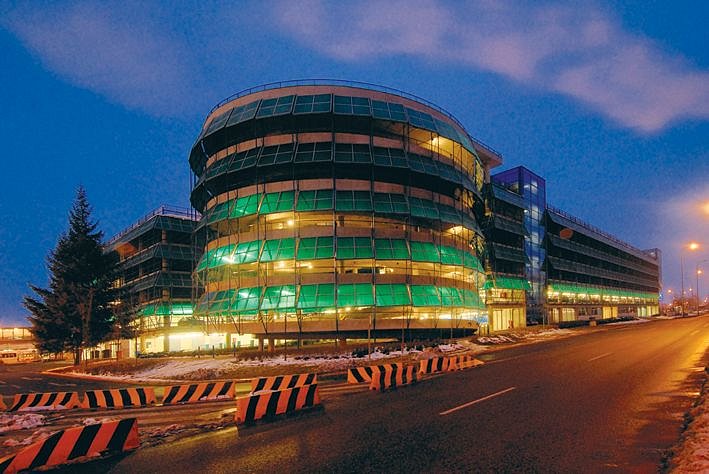

Description:	Apart from the car rental offices, hygienic facilities and parking spaces for the cars for rent, there are also technical facilities consisting of a filling station, two drive-through car washes and a sewage treatment plant on the 1st floor of the building. On the 2nd through the 6th floor there are not only parking spaces, but also spaces for baggage trolleys. The vertical movement of cars is enabled by circular ramps. There are also 2 elevators and 4 emergency staircases for persons. The structure consists of a ferro-concrete poured in-situ foundation slab and walls. The load-bearing structures of the circular entrance and exit ramps form a separate construction part. The staircase tower and the elevator shaft feature a glazed facade fitted in a steel grid. The most important outdoor structures are the hard surfaces of parking spaces, roads and pavements with an area of 2,500 sq.m executed with interlocking pavestones. The bus parking, with an area of 3,000 sq.m, has a bituminous surface.
